2D map showing the spatial distribution of pedestrian experience issues around Turtle Lake

tactical urbanism to reclaim space
DESIGN PROPOSAL
CURRENT CONDITION
The current layout gives too much space to vehicles, encouraging high speeds that pose risks to pedestrians. Narrow sidewalks and wide curves make walking uncomfortable and unsafe. The area lacks visual interest and discourages active use, with traffic dominating the space.
DESIGN PROPOSAL
This proposal introduces sidewalk expansions, curb extensions, and visual enhancements such as murals and differentiated pavement materials. These interventions aim to reclaim space for pedestrians and improve walkability by slowing down vehicles and enhancing visibility. The redesigned sidewalks feature art elements and playful surfaces to stimulate a more vibrant public realm.
CURRENT CONDITION


Legends
VEHICLE-FREE DAY ZONE
SCHOOL ZONE
CAR PARKING

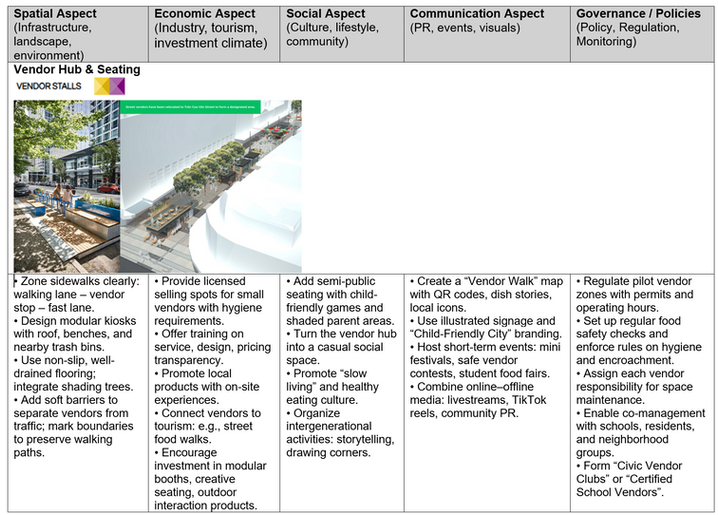

VENDOR STALLS
POLLARDS

PLAYGROUND EQUIPMENTS



AMENITY FOR CHILDREN AND FAMILY
VIHECLE ENTRANCES
Conflict between road users areas
SHADING DEVICES

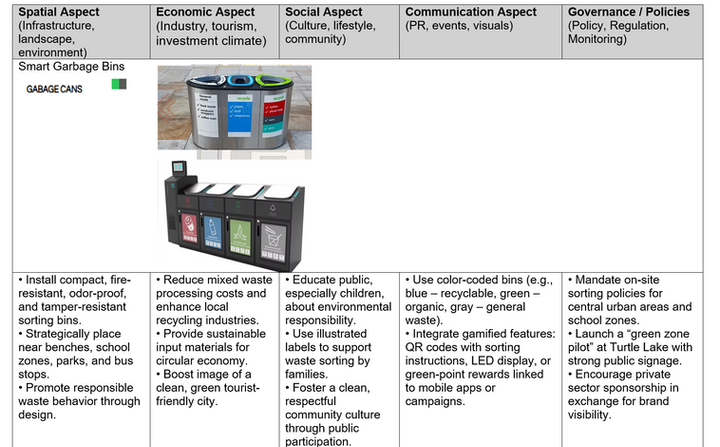

GABAGE CANS
PEDESTRIAN CROSSING
BUILDING USE



PARKING LOT




















































































































Scenario 3: Positioning Turtle Lake as a branded “Child-Friendly and Safe Walking Zone”Addressing traffic safety and enhancing walkability for children
Scenerio 3 - Positioning Turtle Lake as a branded “Child-Friendly and Safe Walking Zone” by IICBF
